Dental Vacuum Units

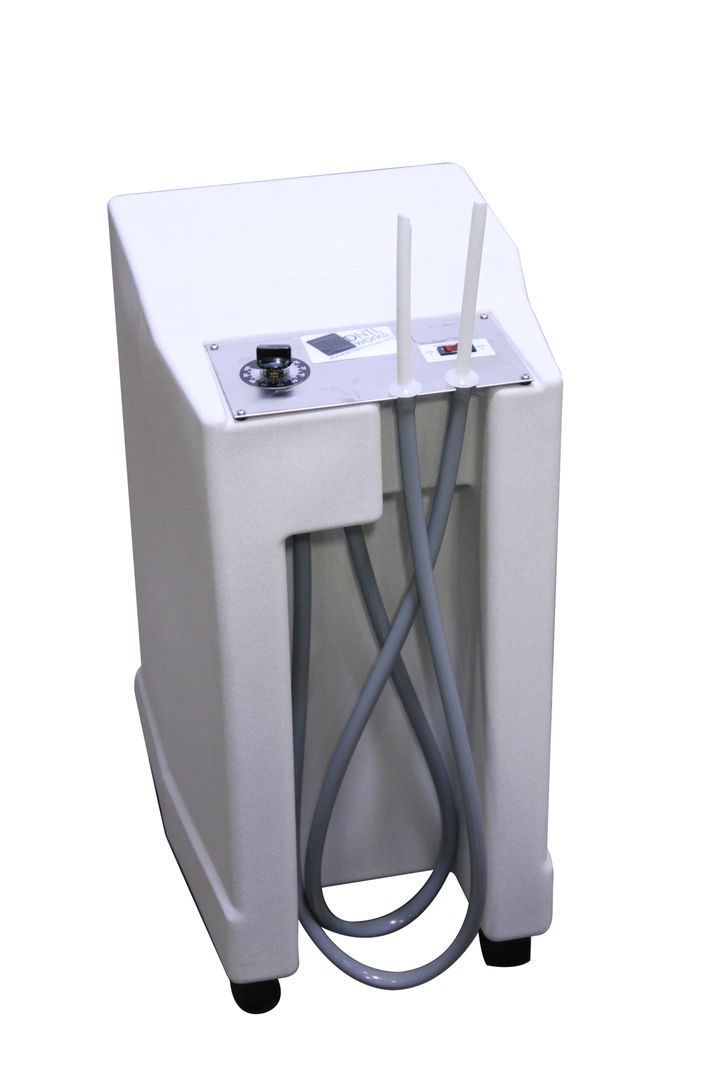

Model 3000 Porto-Dent




Model 3001
Porto-Dent


Mobile Vacuum Unit
Porto-Dent is perfect where central installation is impractical, and for practitioners with an extra office to furnish.

Compact
Measures only 13" x 16" x 26". It is no obstacle at chair side and stores inconspicuously.

Value Priced
Easily the least expensive of oral evacuation units. Excellent for limited budgets.

Ideal for Backup
A lifesaver when the central system breaks down. The user just rolls it out, plugs it in, and keeps operating.

Easy Maintenance
Non-corrosive collection canister cleans easily and is equipped with an automatic overflow shut-off. Motor comes with a one-year guarantee and can be replaced in minutes with a screwdriver.

Efficient
Adjustable motor speed can evacuate indefinitely at the rate of 75 cfm, or can be adjusted to the user's preference.

Moves Easily
Rolls quietly on large polyethylene carpet casters.

Special Uses
Needed especially by the dentist in a temporary location or when it is not feasible to install a central system. Perfect for such specialists as
•periodontists
•orthodontists
•endodontists
•hygienists and other professions

Cabinet
White Granite impact resistant polyethylene.
Equipped with Muffler System for quiet operation
Valves on each suction hose
Hanger provided for hose
High volume suction

Specifications
Electrical
101008 (PV-5)
101009 7/8 HP
115 VAC, 50/60 Hz
101009 230 VAC, 50/60 Hz
4.0 AmpsSound Level db 70 db at 100%
Vacuum
Motor Control Variable Speed Control
Construction Molded polyethylene
Impact Resistant
Chair Capacity Comes with 2 hoses
Vacuum Suction 80" of water (6" of Hg)
Vacuum Airflow 75 cfm
Canister Stainless Steel - 2 Liter
Net Weight 35 Ibs
Dimensional
Shipping Wt./Dim. 60 Ibs, 20" x 16" x 31"
Ships via UPS/FEDX
Dimensions (unit) 13"W x 16"D x 26"H
Dimensions
(canister) 7" Dia. x 8"H


3000 Mobile Vacuum Unit for In-Office Use (120 V) ⅞ HP $2,070.00 Call to Order (877) 625-2309
3001 Mobile Vacuum Unit with Amalgam Separator (120 V) ⅞ HP $2,495.00



PortaVac Portable Vacuum Unit

PortaVac Portable Vacuum Unit
PortaVac Portable Vacuum Unit
The PortaVac from DNTLworks Equipment Corporation provides powerful suction capability in compact, lightweight carrying case.

The PortaVac is designed for rugged transport and is ideal for missionary work, hospitals, clinics, private home care, nursing homes, the military, and many more field applications

Features
  • Strong 1/3 hp vacuum motor. lightweight, one-piece design in impact-resistant cases.
  • Dual hose design for H.V.E. and saliva ejector use.
  • Front mounted valve holders and controls for convenience.
  • Large waste container with automatic overflow shut-off.
  • 15 amp circuit protection.
  • Proudly made in the USA.
Additional Features
  • Hard shell integrated case.
  • Accommodates many brands of H.V.E. and saliva ejector tips.
  • Easy-reach front mounted controls.
  • Large waste container.
  • Built-in carrying handle.
  • Small size for convenient storage.
  • Dual hose design
  • Automatic overflow shutoff
  • Lightweight, but rugged.
Specifications

DIMENSIONS/WEIGHT
Length: 24” (60.9 cm)
Width: 10“ (25.4 cm)
Height: 21” (53.3 cm)
Weight: 46 lbs. (20.9 kg)

Vacuum System
Horsepower: 1/3 hp
Operating Pressure: 12" Hg
Flow Rate: 4.6 scfm
Waste Receptacle: 2 qt (1.9 Liters)
Sound Level: 46dB
Automatic Overflow Shutoff Valve

Electrical System
Voltage: 115 Volts / 60Hz
Circuit Breaker: 15 amps
Hospital Grade Wiring: NEMA Type
5-15 Plug
3010 PortaVac Portable Vacuum Unit for Field Use (110 V) ⅓ HP $2,599.00 Call to Order (877) 625-2309
